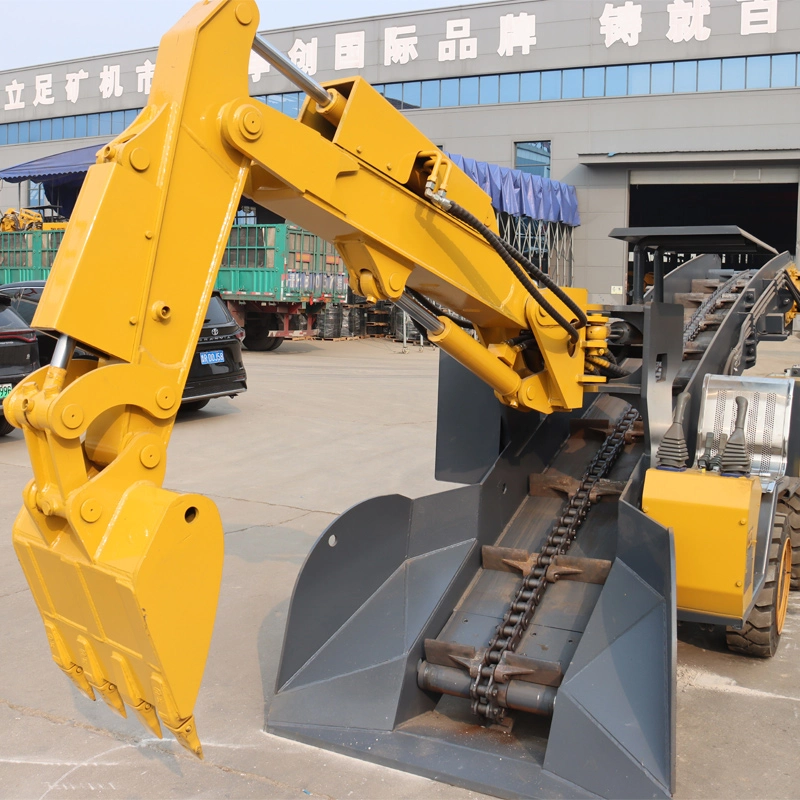

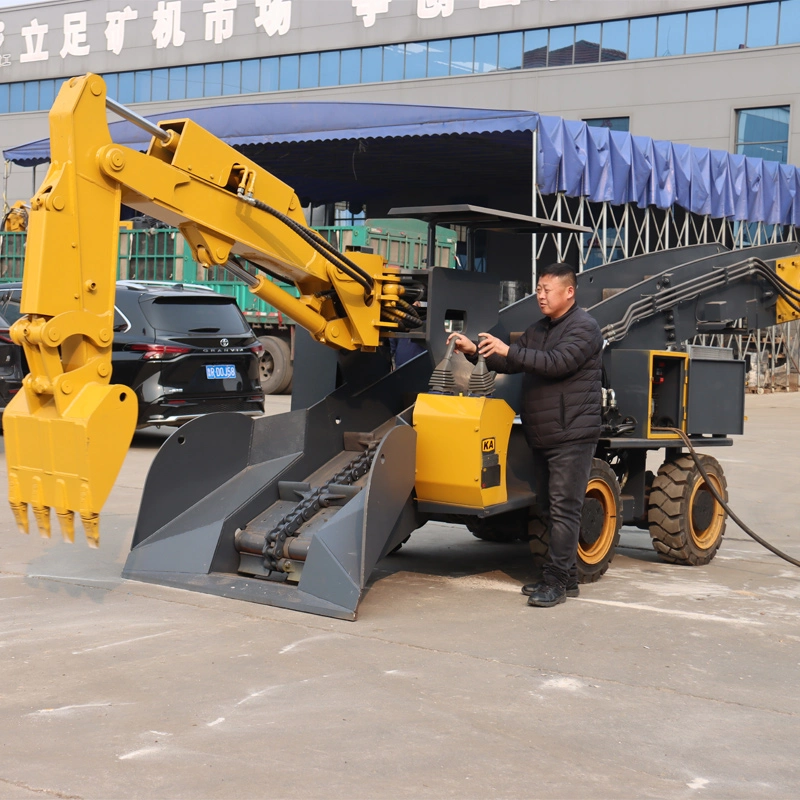

The wheeled slag raking machine is a sturdy and durable device, equipped with a four-wheel drive system, featuring outstanding driving force and multi-functionality. It has a wide picking range and can load rocks throughout the entire operation area, ensuring no blind spots are missed. Its design enables it to clean the entire working surface without human intervention, and it can operate efficiently even in harsh working environments.

In addition to its powerful performance, this loader also adopts an innovative chain conveyor method, completely replacing the traditional belt conveyor system. This modern approach not only simplifies the material conveying process but also extends its service life by more than 30 times compared with traditional systems. A significant improvement in durability means lower maintenance requirements and higher overall reliability.


In addition, this machine adopts a modular production design, which simplifies installation and operation even in confined Spaces. With its compact structure and low center of gravity, this loader features excellent stability and flexible maneuverability. These features make it an essential model for workplaces with limited space but where performance is of critical importance, offering both operational efficiency and economic benefits.

                                                                        Coal mine wheeled slag raking machine

Project

Unit

ZWY-60/22T

ZWY-80/30T

Weight

T

6.2

8.6

Overall dimensions (length * width * height)

millimeter

5800 * 1650 * 1700

5800 * 1700 * 1850

Loading capacity

Cubic meters per hour

Material 60

Material 80

Minimum turning radius

millimeter

3600

3800

Ground clearance

millimeter

200

210

Nominal work pressure

Megapascal

16/25

16/25

Driving speed

Kilometers per hour

Maximum: 4.5 Minimum: 2

Maximum: 4.5 Minimum: 2

Climbing ability

°

≤18 (adapted to ground)

≤18 (adapted to ground)

Maximum material throughput size (length * width * height)

millimeter

810 * 580 * 500

810 * 680 * 500

Application of tunnel slope

°

≤10 (adapted to ground)

≤13 (adapted to ground)

Applicable cross-section (width * height)

meter

2.2 x 2.2 or higher

2.5 x 2.5 or higher

Motor power

Kilowatt

18.5/22

22/30

Excavation width

millimeter

≥4200

≥4800

Excavation distance

millimeter

≥1600

≥1800

Excavation height

millimeter

1800 - 2700

1800 - 2700

Dig deeper

millimeter

≥450

≥500

Unloading height

millimeter

1250-1750 (can be increased)

1350-1750 (can be increased)

Minimum loading height

millimeter

1200 (Variable)

1400 (Variable

Maximum rotation Angle

°

Plus or minus 45

Plus or minus 45

Unloading distance

millimeter

1600 (extendable

1700 (extendable)
